LOADCELL


LH : 0967.250.166

Loadcell : 150kg, 300kg, 500kg( Same UDA)
CHI TIẾT SẢN PHẨM

Rated Capacities50,60,100,150,200,250,300,500,600,750,800,1000,1200(kg)
Rated Output2.0 mV/V±5%
Non-linearity0.02% R.O.
Hysteresis0.02% R.O.
Repeatability0.02% R.O.
Creep(30min)0.02% R.O.
Temperature Effect On Output0.002%R.O./℃
Temperature Effect On Zero0.003%R.O./℃
Zero Balance±0.0200 mV/V
Input Impedance390±15 Ω;410±15 Ω
Output Impedance350±5 Ω
Insulation Impedance≥5000MΩ/(50VDC)
Safe Overload150% R.O.
Ultimate Overload200% R.O.
Operating Temperature Range-20~60 ℃
Recommended Excitation5~12 VDC
Maximum Excitation15 VDC
ConstructionAluminum Alloy;Steel Alloy
Protection ClassIP66 / IP67
Cableφ5×2 m
Platform Size800×800 mm
Mode of ConnectionRed(EXC+),Black(EXC-),Green(SIG+),White(SIG-)

LOAD CELL

LOADCELL
(Model: 001)

LH : 0967.250.166


LOADCELL Z
(Model: 001)

LH : 0967.250.166


LOADCELL NA128
(Model: 001)

LH : 0967.250.166

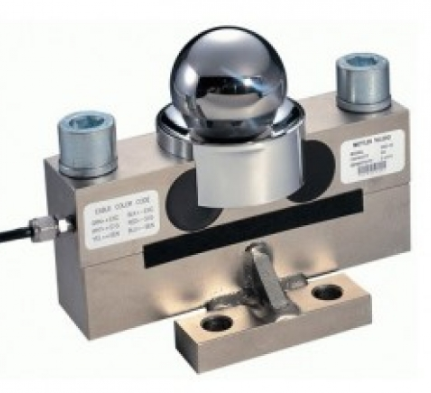

LOAD CELL HM 9B-30T
